STABILIZER FORGINGS


Material Description

  • Made from AISI 4145 H or AISI 4145 H Modifield Alloy Steel and Non-mag material. Heat treated to 285-341 Brinell Hardness and 54 Joules minimum impact value. All physical properties would be guaranteed 1" below the surface.
    All threads are made strictly in accordance with API specification. The hardbanding of stabilizers employ "pressed
    in" Tungsten Carbide alloy buttons or other anti-wear materials. All stabilizers should be ultrasonic tested.

Type:

Stabilizer Forging Hole Size: 6"-26"
Non magnetic Stabilizer Forging Hole Size: 6"-17 1/2"

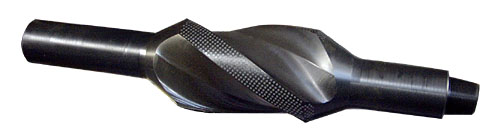

Integral Spiral Blade Stabilizer Bit Size: 6"-28", Type: Integral 3(4) Spiral Blade Stabilizer(String type, Near bit type)
Integral 3 or 4 Straight rib Stabilizer Bit Size: 6"-17 1/2"
Replaceable sleeve stabilizer Bit Size: 8 1/2"-17 1/2"
3 Piece Sleeve Replaceable Stabilizer Working OD: 190.5mm-444.5mm
Non-rotating Stabilizer Hole Size: 7"-28"
Float Valve Stabilizer Body OD: 127mm-228mm
Variable Diameter Stabilizer Body OD: 201mm and 204mm
Drilling Reamer Hol: 6 1/8"-26"
Spherical Stabilizer Working OD: 6"-12"

Click here to see more photos


Non magnetic stabilizer forgings could meet following properties:

  • Hardness: 285 BHN min
  • Yield strength: ¦Ò0.2 ¡Ý 689Mpa
  • Tensile strength: ¦Ò b ¡Ý 758MPa
  • Elongation: ¦Ä4(%) ¡Ý 20
  • Average: Ur ¡Ü 1.010
  • Magnetic Field Gradient: ¦¤B ¡Ü 0.05¦ÌT
  • Magnetic Permeability (MPS=1X105 /4¦Ð A/m)
Click pictures to enlarge
